On-board weighing scales from Loup Electronics are widely used in the aggregates and mining industries. By measuring hydraulic pressure in the lift cycle, the Load Log models of on-board weighing scales give a display in the cab of each bucket load and the total material loaded. From the entry level single channel instrument such as the Loadlog 500+ to the Loadlog 8000i Loup offers a wide choice of on-board weighing scales. With the optional accessories available, these instruments can be further enhanced to solve practically every on-board weighing requirement.
| Loader Scale Features
• Load on the go, no stopping the machine or bucket
• Advanced weighing mode for accuracy
• Live last bucket
• Target loads and auto bucket add
• Printing option LL8000i and LL500+
• Data logging to built-in SD card, model 8000i only
|

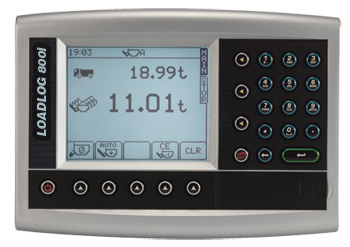

LOADLOG 800i
| LOADLOG 800i
• Automatic, speed-compensated, dynamic weighing
• Static weighing mode
• Accuracy + or - 2% or better
• Live last bucket tip off facility
• Large display for normal loading operation showing bucket load and target load,
• Universal mounting bracket allowing adjustment to virtually any angle
• Rugged Dis paly Construction all enclosed by a heavy-duty ABS case
• Multiple attachment calibration
• Intended for all makes and models of wheel loaders
• Backlit LCD graphic display and keypad |
|

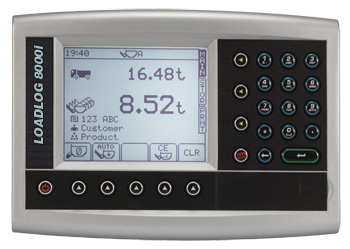

LOADLOG 8000i
| LOADLOG 8000i
• Dual Pressure Sensors to assure highest degree of accuracy.
• Uses differential pressure to determine Weight in Bucket.
• Automatic “Speed Compensated” Dynamic Weighing, no stopping the bucket.
• Displays individual Bucket Weight, Total Loaded and Target Weight.
• Displays Customer Name, Product Name and Time of Day.
• Large LCD Display in Rugged ABS case, supplied with universal mounting bracket allowing for adjustment to view at any angle.
• Live last Bucket tip-off and Reweigh Bucket for Target Load accuracy.
• Internal Memory for up to 1000 customers or products.
• Optional In-Cab Printer
• Built-in SD Card slot for easy data collection.
• Optional Wireless communications, loader to office via Load 200 Software.
• Customer and Product reports.
• Daily Load Reports.
• Automatic Bucket “add” to the total loaded.
• Minimal operator interface to the Scale System. Easy to Use! |
|

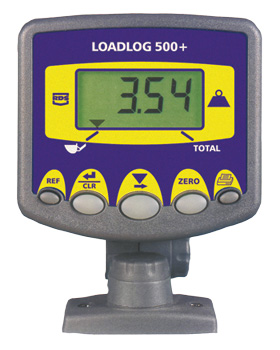

| LOADLOG 500+ is an on-board weighing system for vehicles with or without cabs.
It is intended for use on compact wheel loaders, front-end loaders, and back-hoe loaders, (loader side only). It measures, displays and records the net weight lifted.
Optional printer can be connected and will print time, date and total tons or pounds Loaded. |
To learn more about On-board weighing scales go to the REQUEST MORE INFO button above or click on the DIRECT CONTACT button to reach Loup Electronics directly.
|
