Van der Graaf Incorporated manufacturers a complete line of motorized pulleys for belt conveyors.
Being completely sealed, all components are housed internally, eliminating the need for external components such as motor, gearbox, chains, sprockets, chain guards and pillow block bearings.

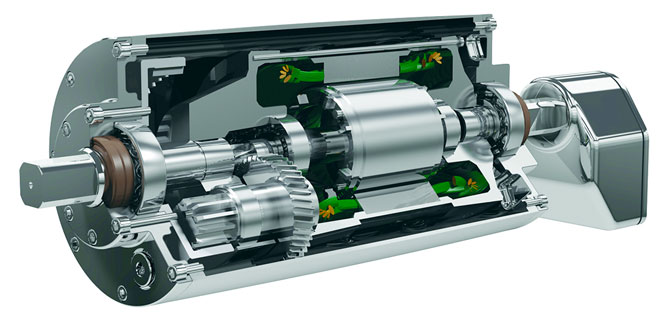

Drum Motor - internal working components.
|
|
The drum motor reduces operating and maintenance costs due to efficiencies, while allowing operation in any adverse condition. The newest advancements include the use of labyrinth cassette type seals to prevent debris from entering the drum motor and prevent oil from escaping. This allows the drum motor to operate in any condition, whether outdoors, dusty, abrasive or a harsh environment.
The Drum Motor providing 100% up time in an aggregate plant.
|
Benefits
INCREASE OPERATOR SAFETY
All external moving parts such as gearbox, chains, motor, chain guard and pillow block bearings that present safety hazards are eliminated. ENHANCE SPACE UTILIZATION
Low profile of the drum motor results in a cleaner appearance and allows to fit more belt conveyor into less floor or overhead space. Allows higher density and multiple applications.
LOWER ENERGY COSTS
Van der Graaf drum motors operate at 96% mechanical efficient resulting in lower operating cost compared to conventional drives. The added efficiency of internal drive components can result in energy savings of up to 30% over conventional exposed-drive conveyo
REDUCE NOISE LEVELS
The gears are manufactured using high quality alloy steel, teeth cut and honed to AGMA/DIN 6 standards, reducing noise to minimal decibel levels which exceeds OSHA requirements for noise.
REDUCE MAINTENANCE & DOWNTIME
The drum motor being completely sealed with no external moving components, eliminates the need for continual adjustment and yearly maintenance. Our motors are virtually maintenance free, requiring only an oil change after 50,000 hours of operation which can be performed without removing the drum motor from the conveyor.
QUICK & EASY INSTALLATION
Less time to install than exposed conveyor drives.
To learn more about the Drum Motor go to the REQUEST MORE INFO button above or click on the DIRECT CONTACT button to reach Van der Graaf directly.
|
