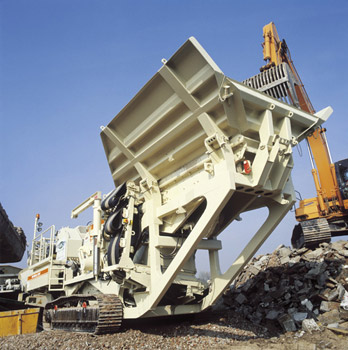

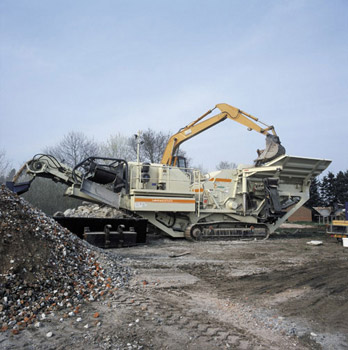

Metso designed the Lokotrack LT1213 to help users achieve greater productivity and efficiency in their operations. The LT1213 impactor plant offers unbeatable combination of top crushing performance and outstanding end product quality. It uses a new, more productive impact crushing method that opens up new business opportunities for customers. This one unit can crush both blasted rock and any mineral-based demolition debris, making the LT1213 suitable for a wide range of applications including quarry, recycling and highway construction.
The hopper size can be selected according to the feeding equipment |
|
The LT1213 is built around Metso's proven NP1213M impact crusher |
|
Easily customized for efficient operation
The LT1213 is easy to customize for efficient operation in construction and recycling applications. In addition to the standard feeder, a two-stage feeder is available for efficient separation of fines. Different feed hopper sizes are available and can be selected according to the feeding equipment being used. When processing difficult recycling materials, an optional vibrating feeder under the crusher ensures continuous, trouble-free material flow from the crusher to the discharge conveyor. Proven impact crusher with complete automation system
The LT1213 is built around the proven Metso NP1213M impact crusher, engineered specifically for mobile applications. The NP1213M features a larger crushing chamber, optimized wear material and a heavy-duty rotor design to boost productivity. The crushing process is controlled by the IC500 control system, including fully automatic process control, push-button process start, fault diagnostics and built-in troubleshooting. When you put it all together-efficiency, power and performance–the Lokotrack LT1213 is the perfect solution for primary crushing, on its own or together with other Lokotrack crushers and mobile screens. Lokotrack LT1213 features: - proven NP1213M impact crusher
- two feeder options
- optional vibrating feeder under crusher
- environmentally-friendly diesel motor
Lokotrack LT1213 Specifications
| Crusher - Nordberg NP1213M impact crusher |
| - Feed opening | 52 x 35.5 in (1320 x 900 mm) |
| - Crusher speed | 450-600 rpm |
| - Hydraulic drive |
|
| Feed hopper | 8 yd3/12 yd3 (6 m3/9 m3) |
| - Width | 8.5 ft. (2600 mm) |
| Metso TK11-42-2V feeder |
| -Length | 13.75 ft. (4200 mm) |
| -Width | 3.6 ft. (1100 mm) |
| Engine | CAT C13 |
| -Power | 415 hp (310 kW) |
| -Max. capacity up to | 440 stph (400 tph) |
| Dimensions (transport, standard unit) |
| -Length | 48 ft. (14,700 mm) |
| -Width | 9.8 ft. (3000 mm) |
| -Height | 11.2 ft. (3400 mm) |
| -Weight | 110,000 lbs. (40,000 kg) |
To learn more about the Lokotrack LT1213 impactor plant go to the REQUEST MORE INFO button above or click on the DIRECT CONTACT button to reach Metso directly. |
