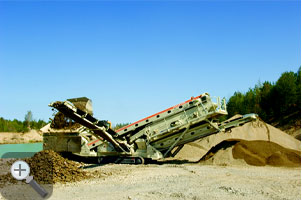

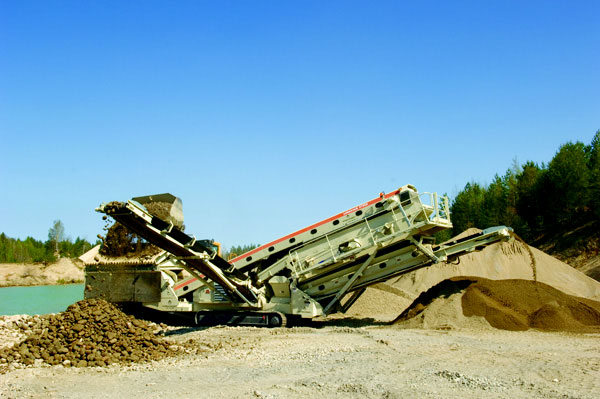

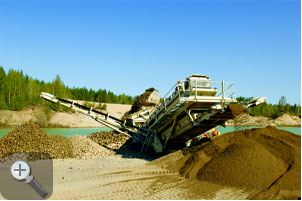

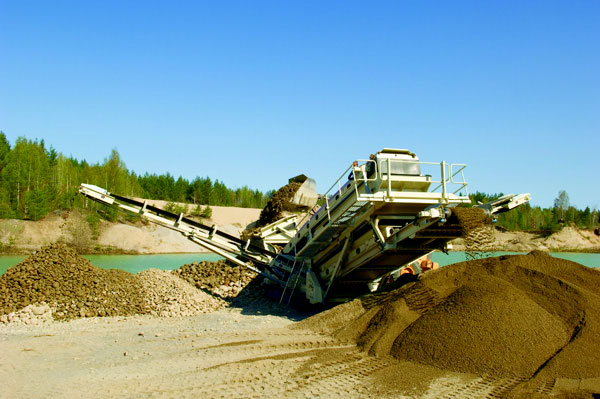

Lokotrack ST358 double-deck mobile screen from Metso

The Lokotrack ST358 mobile screen is the solution for jobs requiring high production capacity and a large screen area for fine screening. The standard unit is capable of producing two end products, and an optional double-deck vibrating grid can be added to yield three products.

Advanced process control
The IC300 intelligent controller on the ST358 offers fully automated control of all machine functions during the screening process. Screen speed and amplitude, in conjunction with conveyor speeds, are continuously monitored and adjusted, resulting in higher production rates and more accurate end products
.
Robust construction
The ST358’s solid construction provides increased durability while allowing it to withstand the rigors of extreme applications. The ST358 is mounted on heavy-duty twin hydraulically driven tracks, giving maximum on-site maneuverability. Remote and radio control options provide for safe, easy movement around the work site. Process adjustments and tipping of the grid are also possible via radio control.

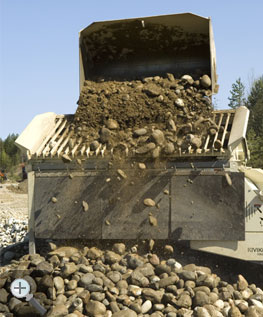

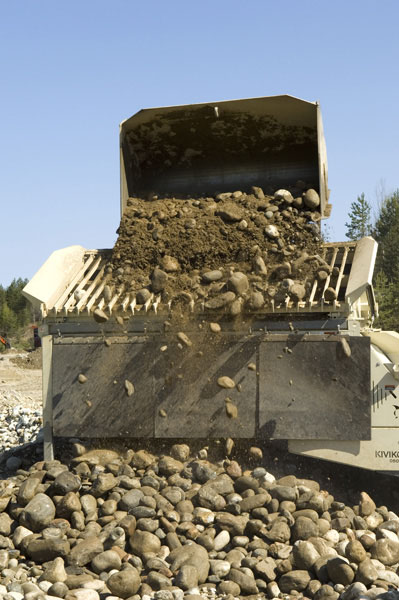

Large double-deck, two-bearing screen
The unique end-to-end crowning of the 18' x 5' (5.4 m x 1.5 m) ST358 double-deck, two bearing screen box in conjunction with advanced process control allows for higher production rates and more efficient separation of difficult materials. The on-board stockpiling conveyors allow for fast set up by eliminating the need for off-plant stacking conveyors. The self-cleaning side conveyors have a patented folding mechanism that provides a compact profile for transportation. The side conveyor discharge height of 15'8" (4.5 m) offers a large stockpile capacity and also allows the unit to work in closed circuit with Lokotrack mobile crushing plants.

For more information about The Lokotrack ST358 double-deck mobile screen visit the WEBSITE button above, click on the REQUEST MORE INFO button above, or click on the DIRECT CONTACT button to reach Metso directly.
