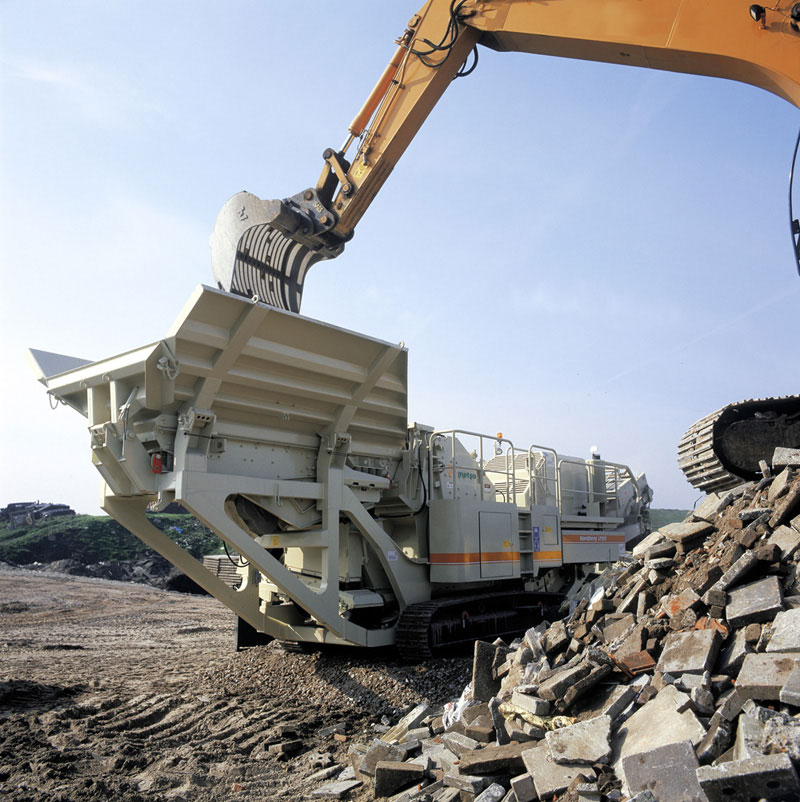

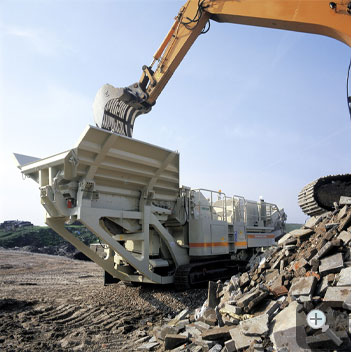

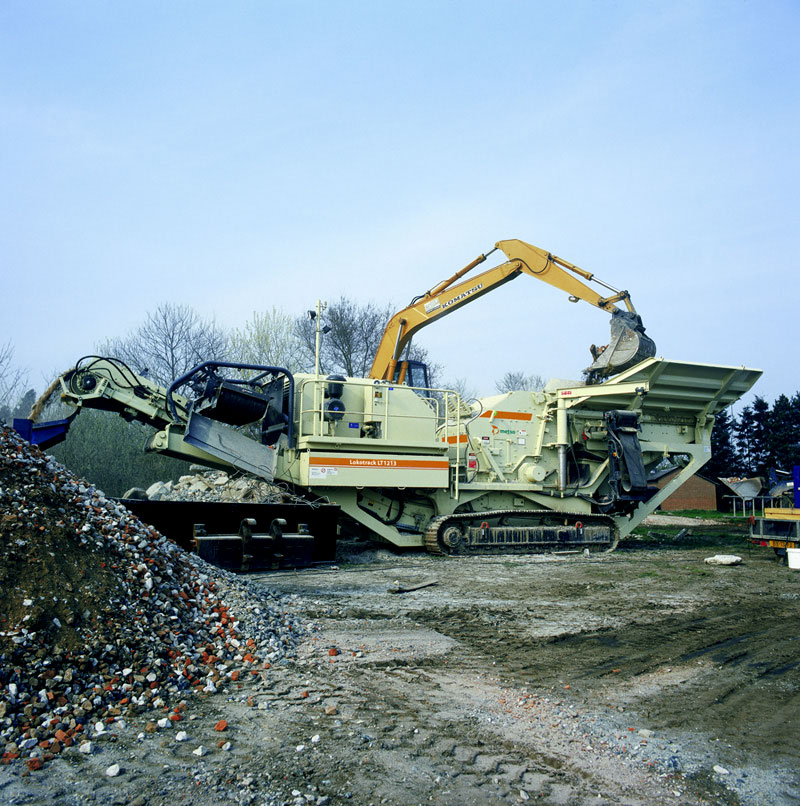

The Lokotrack LT1213 primary impactor plant from Metso combines outstanding crushing performance and superior end product quality. The Lokotrack LT1213 features a new, more productive impact crushing method that opens up a whole new range of business opportunities for contractors. With this one unit, you can crush both blasted rock and demolition debris, while still maintaining top performance and cubical, quality products.
The hopper size can be selected according to the feeding equipment
| |
The LT1213 is built around the proven NP1213M impact crusher
| | Easily customized for efficient recycling
The LT1213 impactor plant is easy to customize for efficient operation in recycling applications. In addition to the standard feeder, a two-stage feeder is available for the efficient separation of fines. The feed hopper size can be selected according to the feeding equipment. When processing difficult recycling materials, the optional vibrating feeder under the crusher ensures continuous, trouble-free material flow from the crusher to the discharge conveyor. Proven impact crusher with complete automation system
The LT1213 is built around the proven NP1213M impact crusher, used in more than 500 mobile applications worldwide. The crushing process is controlled by the IC500 control system, including fully automatic process control, push-button process start, fault diagnostics and built-in troubleshooting. Lokotrack LT1213 is a perfect solution for primary crushing alone or together with other Lokotrack equipment such as secondary or tertiary mobile crushers and screens. Lokotrack LT1213 features: - proven NP Series impact crusher
- two feeder options
- optional vibrating feeder under crusher
- environmentally friendly diesel motor
Lokotrack LT1213 Specifications | | Crusher Nordberg NP1213M impact crusher | | • Feed opening | 52 x 35.5" (1320 x 900 mm) | • Crusher speed | 450-600 rpm | • Hydraulic drive | | Feed hopper | 8 yd3 /12 yd3 (6 m3 /9 m3 ) | • Width | 8.5 ft. (2600 mm) | Nordberg TK11-42V feeder | | • Length | 13.75 ft. (4200 mm) | • Width | 3.6 ft. (1100 mm) |
Engine
| CAT C13 | • Power | 415 hp (310 kW) | Max. capacity up to | 440 stph (400 tph) | Transport Dimensions | | • Length | 48 ft. (14,700 mm) | • Width | 9.8 ft. (3000 mm) | • Height | 11.2 ft. (3400 mm) | • Weight | 110,000 lbs. (40,000 kg) | To learn more about the Lokotrack LT1213 primary impactor, go to the REQUEST MORE INFO button above or click on the DIRECT CONTACT button to reach Metso directly. |
