BTI designs, manufactures and distributes a complete line of attachments including hydraulic breakers, multi-processors, mechanical grapples, pulverizers, shears, crushers and compactors to the aggregate, construction and demolition industries.
“Operator controlled long or short stroke selection maximizes production rates by selecting between high impact (long stroke) and high frequency (short stroke) modes via hydraulic piloted stroke control.”
|
|
“Narrow box-housing design is well suited to tight trenching conditions. The narrow profile allows optimum visibility and access when working in tight quarters.”
|
|

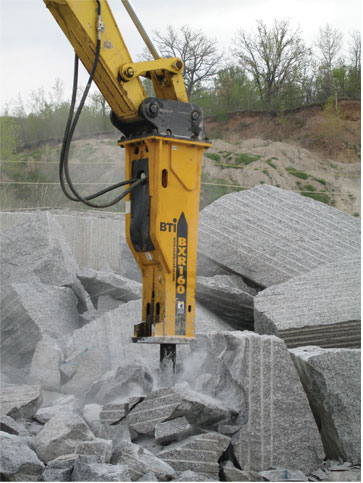

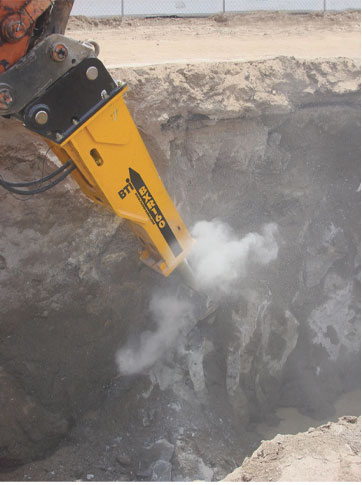

A recent introduction is their BXR160 Hydraulic Breaker, which at 16,000 ft lbs is designed for rugged, continuous duty in demanding breaking applications. It offers an extra long stroke design which improves the power-to-weight ratio, providing the widest carrier range (120,000 to 220,000 pounds) and power available. Precise tolerances between the piston and cylinder provide high efficiency, blow rate and power. Large cross section upper and lower shock absorbing isolators reduce vibration feedback to the carrier. BTI’s exclusive front head restraint system tightly guides the front head within the housing, reducing loading to the tie rods and the upper portion of the breaker. A narrow box housing design is well suited to tight trenching conditions.
Working weight: 12,000 lbs (may vary depending on bracket)
Tool diameter: 8 inches
Flow range: 85 to 120 gpm
Operating pressure: 2,030 to 2,755 psi
Frequency range: 260 to 425 bpm in long stroke mode (high impact), 340 to 530 in short stroke mode (high frequency) - manually controlled via hydraulic piloted stroke control
BTI also designs and manufactures stationary and portable rockbreaker systems for the mining, quarrying and recycling industries in addition to a complete line of underground mobile mining vehicles.
BTI products, parts and service are available through an extensive worldwide dealer network.
To learn more about the BXR160 Hydraulic Breaker go to the REQUEST MORE INFO button above or click on the DIRECT CONTACT button to reach BTI directly.
|
