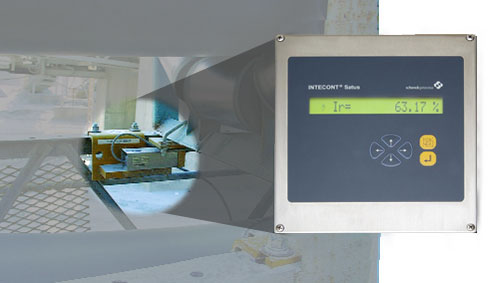

INTECONT® Satus Integrator provides totalized production values coming from the BEMP™ belt scale.
|
|
 | Schenck Process' NTEP approved load cells are the highest quality available; ruggedly constructed to withstand the harshest industrial environments. Ideal for high belt speeds and shock load applications and designed for easy installation.
The Schenck Process BEMP™ Belt Scale with the INTECONT® Satus Integrator has the capability to monitor output in multiple plants using a supplied Ethernet card and any Internet connection. This web-based monitoring can be done throughout the globe. Schenck Process can easily custom program Ethernet cards to match the customer's existing system. The system allows the operator to measure throughput, totalize material, and view the results as they are happening using web pages. The simple and durable BEMP™ Belt Scale with the INTECONT® Satus Integrator gives accurate, reliable reporting of material output. |
BEMP™ Modular Single-Idler Belt Scale / Integrator
For continuous flow rates up to 15,000 tons/hour, Schenck's BEMP™ Single-Idler Belt Scale combines quality, performance, and affordability in a modular package that can be shipped from stock. The BEMP™ mounts easily to the conveyor frame using only (4) bolts and can be used on conveyors of any width, from 18" to 60"-wide CEMA idlers.
Using (2) NTEP-approved single point load cells and the Schenck INTECONT® Satus Integrator, accuracies of +/- 1% of totalized weight are possible when used on a Schenck-approved conveyor.
Schenck provides a BEMP™ Single-Idler Belt Scale and INTECONT® Satus Integrator from stock for any conveying application - conveying sand, gravel, crushed rock, synthetic gypsum, or some other bulk material.  | APPLICATION:
Single-idler belt scales are commonly used in belt conveying applications to continuously measure and report flow rates and totalized material amounts. Applications include:
• Measurement of throughput and/or material consumption
• Reporting of alarm conditions
• Totalizing batch weights for load-out stations OPERATION:
"Material weight," measured by the BEMP™ Belt Scale and "belt speed" are multiplied by the INTECONT® Satus Integrator to produce a "flow rate" value. Flow rate is then integrated by the INTECONT® Satus to produce a "totalized weight" value. |
Note: For variable speed conveyor belts, an optional speed sensor can be used in place of a belt speed parameter.
CONSTRUCTION:
The modular BEMP™ Belt Scale features epoxy painted, mild steel construction and is suitable for use with trough or flat idlers 18" to 60" (450 mm to 1,500 mm) CEMA. Stainless steel construction is available as an option. LOAD CELLS:
(2) NTEP-approved, single-point, stainless steel, strain gauge load cells with rated capacities of 66 lbs., 132 lbs., 220 lbs., 330 lbs., or 660 lbs. (30, 60, 100, 150, or 300 kg). The load cells are mounted in compression for optimum accuracy. ACCURACY:
+/- 1% totalized weight over a 3:1 design capacity range when installed on a Schenck-approved conveyor. Dual-idler belt scales with ± 0.5% accuracy are also available.
OVERLOAD PROTECTION:
Positive mechanical stops are provided for optimum protection. OPERATING TEMPERATURE RANGE:
+0° F to +110° F CALIBRATION:
Via static test weights (supplied)
