Tecweigh manufactures electronic conveyor belt scales in single, dual and four idler configurations that are easy to use, dependable and provide top performance at a great value. Their scales feature self-storing calibration weights, user friendly weight processors and the longest warranty in the business. The WY-10 and WY-15 systems are two of their most popular belt scales. WY-10 Belt Scale

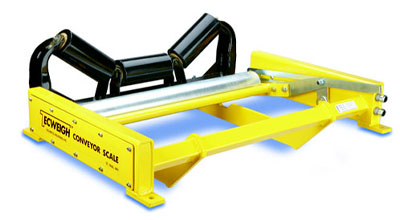

The Tecweigh WY10 Single Idler Conveyor Scale is the one of the most dependable and rugged belt scale on the market. Weather-tight one-piece construction keeps your line rolling even in the most extreme conditions: dust, dirt and harsh weather. Unique within our industry, the WY10 utilizes LVDT load sensor technology. LVDT load sensors simply can’t be overloaded and are far less susceptible to damage from lightning strikes, making blown load cells a thing of the past.
| Features
• ± 1/2% Accuracy in Factory Approved Installation
• Rugged Steel Carriage
• Self-Storing Calibration Weights
• User-Friendly Electronic Weigh Processor
• The Longest Warranty in the Industry; 5 years! Other Options • Wireless Communication
• Chart Recorders
• Ticket/Tape Printers
• Remote Rate/Total Displays
• Scoreboard Displays
• Industrial Network Communication Protocols
(Ethernet, Profibus, DeviceNet, Modbus RTU & others) |
| |
|
Operating parameters generally determine the model best suited for a particular application. Information on the dual and quad-idler options for even greater accuracy are available on their website. WY-15 Belt Scale

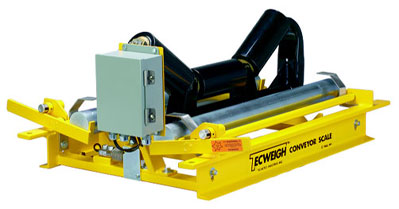

Keeping with their tradition of unbeatable accuracy, dependability and ease of use leads Tecweigh to combine its unique time and labor saving belt scale features with strain gauge load cell technology in its WY15 Conveyor Scale.
The Tecweigh WY15 Single Idler Conveyor Scale utilizes two NTEP approved bending-beam load cells, features rigid all-welded construction. It is more reliable, more durable and easier to use than the competition's scales and is backed with the longest (five-year) warranty in the industry.
| Features
• ± 1/2% Accuracy in Factory Approved Installation
• Rugged Steel Carriage
• Self-Storing Calibration Weights
• User-Friendly Electronic Weigh Processor
• The Longest Warranty in the Industry; 5 years!
Other Options
• Wireless Communication
• Chart Recorders
• Ticket/Tape Printers
• Remote Rate/Total Displays
• Scoreboard Displays
• Industrial Network Communication Protocols
(Ethernet, Profibus, DeviceNet, Modbus RTU & others) | |
Operating parameters generally determine the model best suited for a particular application. Information on the dual and quad-idler options for even greater accuracy are available on their website.
Wireless Communication
Tecweigh’s unique RS485 serial communication link between scale and processor allows a 4000 ft cable run to the weigh processor without degrading the load cell signal. This highly flexible platform can also reduce overall cost of installation and increase the distance by replacing the cable with wireless radios. And for a 100% wireless scale installation use our wheel driven generator that rides on the return side of the conveyor belt to provide a point of use power source for your scale and radio. A perfect fit for the portable plant on the move.
