Finally, an impact idler has been designed that can maintain superior operating performance in any field condition while protecting your conveyor belt. The incomparable durability of Cushion Arc® Impact Idlers is obvious in each of its high quality, heavy-duty components. Design
The Cushion Arc Impact Idler from Richwood is designed to provide true arc impact protection in an exceptionally heavy duty idler. The unitized frame is built to withstand extreme operating conditions. Cushion Arc’s multiple rollers provide smooth, full belt width radius support trough transitions that protect the belt from damage, unlike the sharp junction points found in conventional idlers.  The Cushion Arc provides maximum belt protection in your impact zones. |

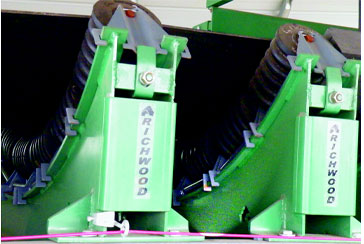

|  The roller frame offers independent support for each impact roller on the main idler frame for simple installation. |
|
Quality Components

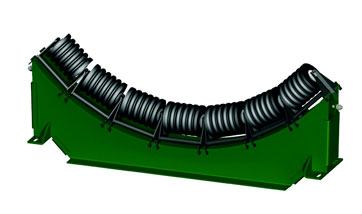

The Roller Segment — Each Cushion Arc Idler has 5 to 9 individual rollers. These are impact resistant 6-inch diameter R2000 rubber molded over a 2- 3/4-inch diameter steel shell. Each roller uses permanently sealed 1- 1/4-inch ball bearings on the solid steel shaft to complete the assembly. The Roller Frame — Offers independent support for each impact roller on the main idler frame for simple installation. As shown here: Impact Idler
The Cushion Arc provides maximum belt protection in your impact zones. The rugged construction of Cushion Arc includes:
• Solid steel independent roller shafts;
• Extra heavy duty steel inner shell;
• High quality R2000 rubber 6-inch diameter solid molded impact rollers;
• Permanently sealed ball bearings with extra sealed protection;
• Solid steel shaft;
• 6-inch diameter rubber impact roller; and
• 1-1/4-inch sealed ball bearings. Maintenance
For maintenance when needed, Cushion Arc rollers can be easily replaced from the side of the belt by simply sliding each roller off its support frame and sliding on the new. To comment on this story or for additional details click on the related button above.
|
